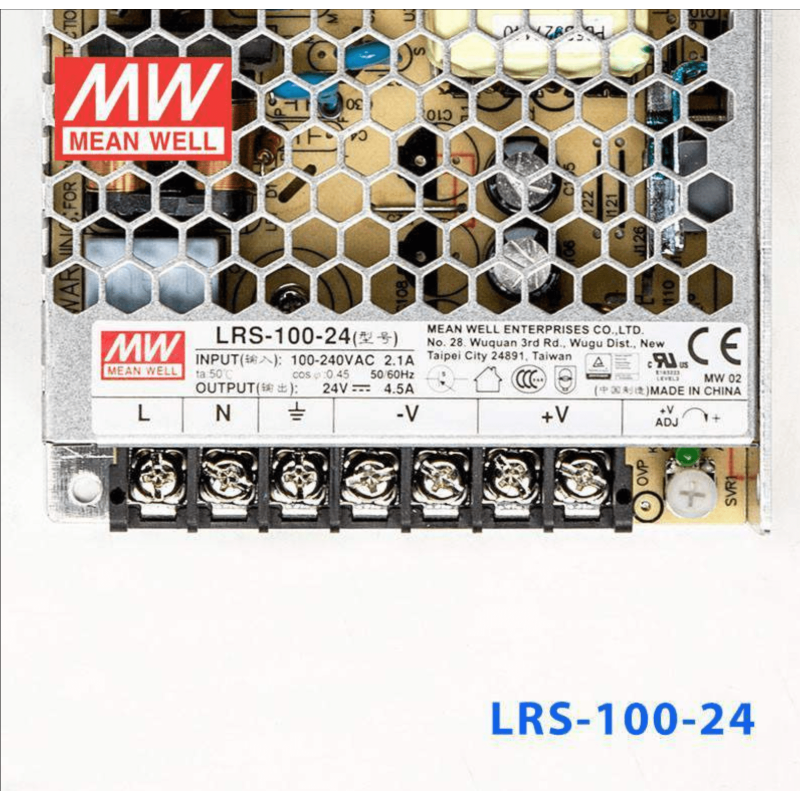

MW LRS-100-24V SMPS POWER SUPPLY

The LRS-100-24 is a 108W single-output enclosed type power supply with 30mm of low profile design. Adopting the full voltage range from 85 to 264VAC input the LRS-100-24 provides an output voltage line of 24V . In addition to the high efficiency up to 90%, the design of metallic mesh case enhances the heat dissipation of LRS-100-24 that the whole series operates from -30℃ through 70 ℃ under air convection without a fan. Delivering an extremly low no load power consumption ( <.3 W), it allows the end system to easily meet the worldwide energy requirement.LRS-100-24 has the complete protection functions and 5G anti-vibration capability; it is complied with international safety regulations such as TUV EN60950-1, EN60335-1,EN61558-1/-2-16 and GB4943. LRS-100-12 serves as high price-to performance power supply solution for various industrial applications.
